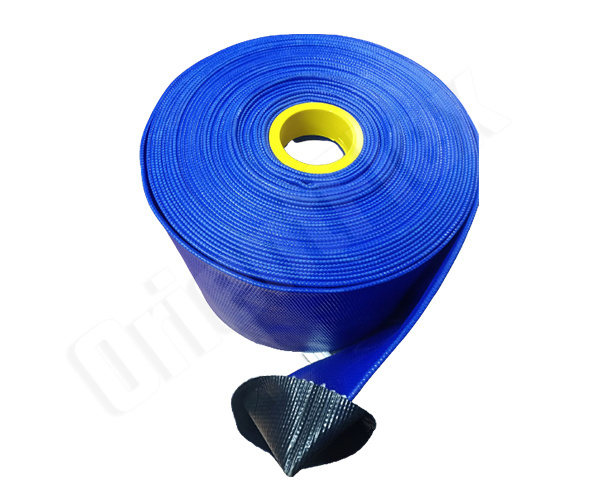

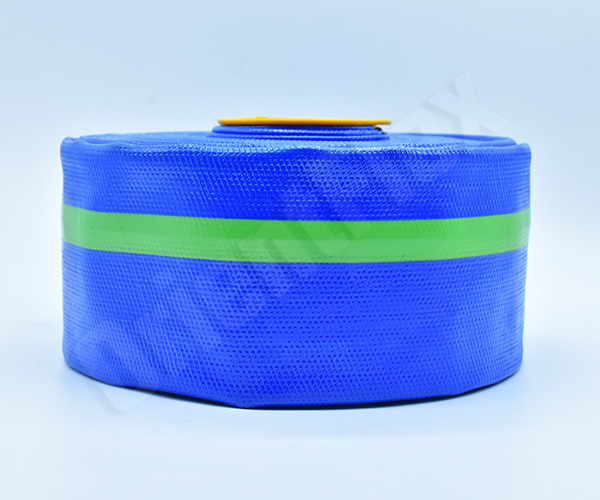

Double PVC Layflat Hose

It consists of two layers of PVC material. The inner layer, also known as the lining, provides a smooth surface for efficient water flow. The outer layer, known as the cover, offers additional protection against abrasion, weathering, and UV radiation.

Construction:
Tube and Cover: PVC resin
Reinforcement: Polyester fabric
Temperature:-10℃ to +60℃ ( 14℉ to +140℉ )

Inquiry Now

Double PVC Layflat Hose Feature

● High pressure, anti-fracture, small expansion rate and so on.
● Light soft, bright color, corrosion-resistant,wear-resistant, anti-aging, anti-UV, environmental odor
● When the liquid is delivered at a low temperature, the hose body itself can remain soft and elastic.

Specification


ID		W.P.		B.P.		L	KG
inch	mm	psi	bar	psi	bar	m/roll	kg/m
2"	51	58	4	174	12	100	0.32
3"	76	58	4	174	12	100	0.45
4"	102	58	4	174	12	100	0.6
6"	153	30-45	2-3	90-135	6-9	50	1.10
8"	203	30-45	2-3	90-135	6-9	50	2.00
2"	51	87	6	261	18	100	0.35
3"	76	87	6	261	18	100	0.6
4"	102	87	6	261	18	100	0.85
6"	153	87	6	261	18	50	1.4

Application

It is commonly used in agricultural irrigation, construction dewatering, water supply and distribution, firefighting, and general water transfer applications that require a robust and reliable hose.
