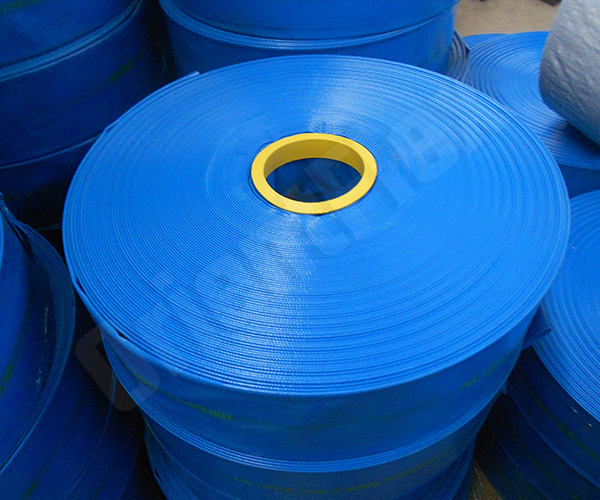

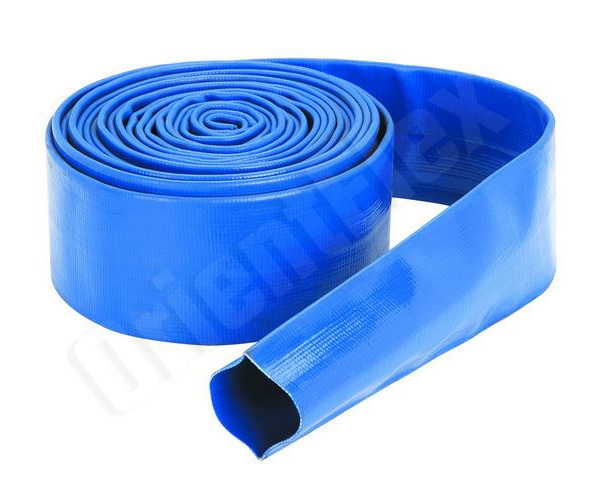

PVC Layflat Hose

Construction:
Tube and Cover: PVC, blue,orange,red.
Reinforcement: high tensile polyester braiding
Temperature: -10℃(-50℉)to + 60°C (+ 140°F)

Inquiry Now

PVC Layflat Hose Feature

● Light weight,Good flexibility.
● Corrosion resistant,anti-aging.
● Easy handle & storage.
● Various colors available.
● Assemblies and/or cut lengths available.
● Non-toxic,Non-smell
● Burst pressure 3 times working pressure.

Light Duty Lay flat Hose Specification


ID		w.p.		b.p.		L
inch	mm	psi	bar	psi	bar	m/roll
3/4"	20	30-45	2-3	90-135	6-9	100
1"	25	30-45	2-3	90-135	6-9	100
1-1/4"	32	30-45	2-3	90-135	6-9	100
1-1/2"	38	30-45	2-3	90-135	6-9	100
2"	51	30-45	2-3	90-135	6-9	100
2-1/2"	64	30-45	2-3	90-135	6-9	100
3"	76	30-45	2-3	90-135	6-9	100
4"	102	30-45	2-3	90-135	6-9	100
5"	127	30-45	2-3	90-135	6-9	50
6"	153	30-45	2-3	90-135	6-9	50
8"	203	30-45	2-3	90-135	6-9	50
10"	254	30-45	2-3	90-135	6-9	50
12"	305	30-45	2-3	90-135	6-9	50

Standard Duty Lay flat Hose Specification


ID		w.p.		b.p.		L	kg
inch	mm	psi	bar	psi	bar	m/roll	kg/m
3/4"	20	58	4	218	15	100	0.14
1"	25	58	4	218	15	100	0.15
1-1/4"	32	58	4	218	15	100	0.17
1-1/2"	38	58	4	218	15	100	0.21
2"	51	58	4	174	12	100	0.23
2.5"	64	58	4	174	12	100	0.32
3"	76	58	4	174	12	100	0.36
4"	102	58	4	174	12	100	0.55
5"	127	58	4	174	12	100	0.75
6"	153	58	4	174	12	100	0.9
8"	203	58	4	174	12	100	1.8

Medium Duty Lay flat Hose Specification


ID		w.p.		b.p.		L	kg
inch	mm	psi	bar	psi	bar	m/roll	kg/m
3/4"	20	87	6	305	21	100	0.14
1"	25	87	6	305	21	100	0.17
1-1/4"	32	87	6	305	21	100	0.19
1-1/2"	38	87	6	305	21	100	0.24
1-1/2"	40	87	6	261	18	100	0.26
2"	51	87	6	261	18	100	0.3
2.5"	64	87	6	261	18	100	0.45
3"	76	87	6	261	18	100	0.5
4"	102	87	6	261	18	100	0.9
5"	127	87	6	261	18	100	1.1
6"	153	87	6	261	18	100	1.8
8"	203	87	6	261	18	100	2.8

Heavy Duty Lay flat Hose Specification


ID		w.p.		b.p.		L	kg
inch	mm	psi	bar	psi	bar	m/roll	kg/m
3/4"	20	145	10	435	30	50	0.15
1"	25	145	10	435	30	50	0.20
1-1/4"	32	145	10	435	30	50	0.21
1-1/2"	38	145	10	435	30	50	0.29
1-1/2"	40	145	10	435	30	50	0.30
1-3/4"	45	145	10	435	30	50	0.35
2"	51	116	8	348	24	50	0.35
2"	51	145	10	435	30	50	0.42
2.5"	64	145	10	435	30	50	0.70
3"	76	116	8	348	24	50	0.66
3"	76	145	10	435	30	50	0.85
4"	102	116	8	348	24	50	1.00
4"	102	145	10	435	30	50	1.20
6"	153	116	8	348	24	50	2.20
8"	203	87	6	261	18	50	2.80

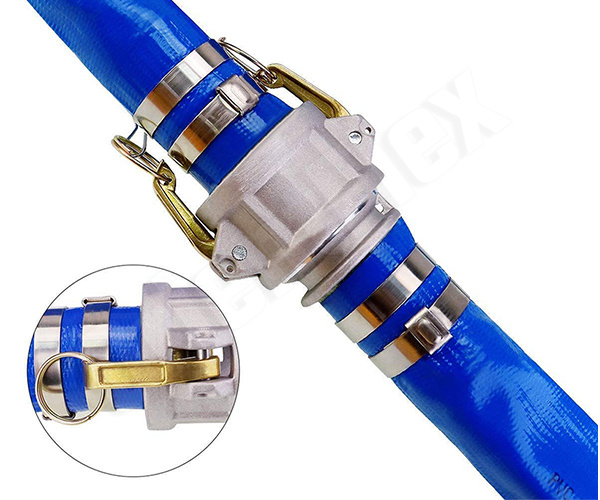

PVC Lay flat Discharge Hose Application

PVC layflat hose is designed for light and heavy duty applications,the hoses are most commonly used in agricultural equipment where continuous water flow through irrigation systems is required. Other appliaction include water pump, pool & spa, construction, mines and marine.
