Rubber Layflat Compressed Air Hose
Rubber Layflat Compressed Air Hose

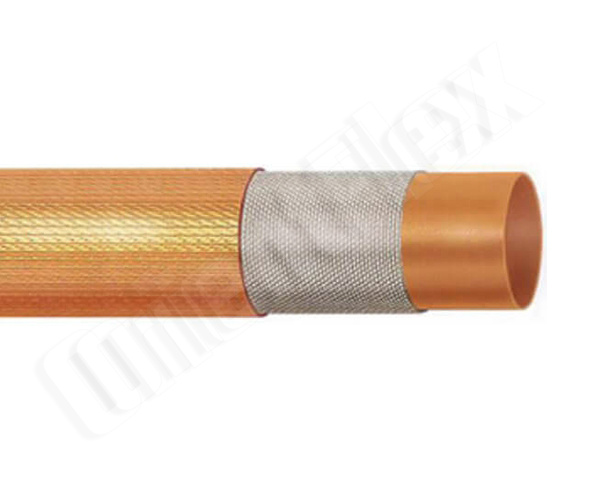

It is a type of hose specifically designed for the transfer of compressed air or gases in various industrial applications. It is constructed with a rubber inner lining and a synthetic textile reinforcement, encased in a rubber cover.
Construction:
Inner and cover:
1.Nitril synthetic rubber
2.TPR(thermoplastic rubber )
Rinforcement: polyester woven jacket
Rubber Layflat Compressed Air Hose Feature
● Unique woven construction-Resists kinking stretching and twisting
● Resistance to oil contaminated air, weathering and abrasion
● Lightweight and flexible,easy handling,easy to store
Rubber Layflat Compressed Air Hoses Specification
| Size | W.P. | B.P. | L | |||
| inch | mm | bar | psi | bar | psi | ft |
| 3/4 | 19.1 | 27 | 400 | 81 | 1200 | 100/200 |
| 1 | 25.4 | 27 | 400 | 81 | 1200 | 100/200 |
| 1 1/2 | 38.1 | 20 | 300 | 60 | 900 | 100/200 |
| 2 | 50.8 | 14 | 200 | 42 | 600 | 100/200 |
| 3 | 76.2 | 14 | 200 | 42 | 600 | 100/200 |
| 4 | 101.6 | 14 | 200 | 42 | 600 | 100/200 |
| 6 | 152.4 | 14 | 200 | 42 | 600 | 100/200 |
Application
It is designed for air compressors, pneumatic tools, Rock drill,automated air line, air supply, construction equipment and so on.
