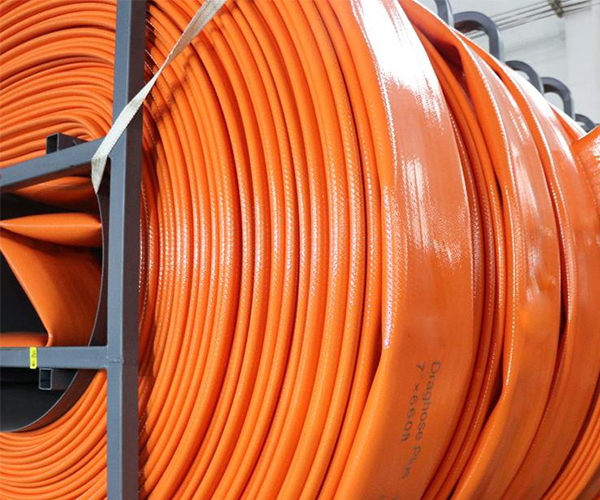

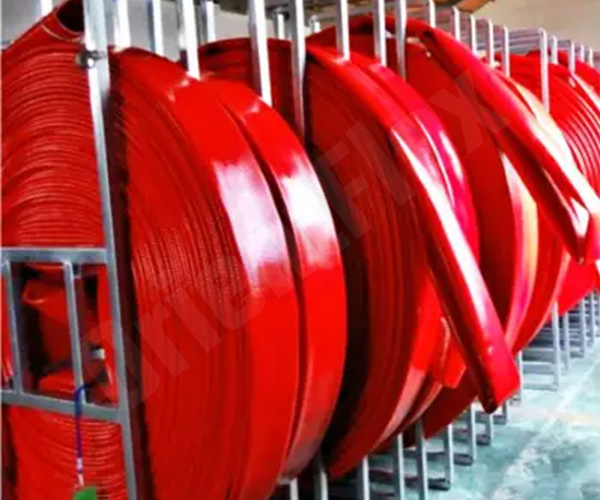

Manure Drag Hose

Manure drag hose, also known as a dragline hose or simply drag hose, is a specialized type of hose used in agriculture for the application of liquid manure or other organic fertilizers. It is designed to facilitate the efficient and controlled distribution of manure across fields or pastures.

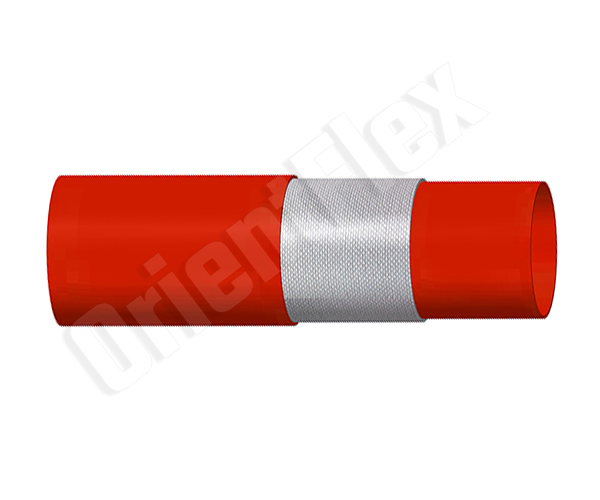

Construction：Extruded Through-the-Weave
Cover：Superhigh abrasion resistant & High tensile strength TPU
Reinforcement：100% High tenacity synthetic polyester yarn
Tube：Superhigh abrasion resistant & High tensile strength TPU
Operating Temperature：-60° F to 176°F (-50oC～+80oC)
Other diameters on request: standard lengths 100m and 200m,available in lengths up to 500 m depending on diameter
Accessories: Series agricultural connectors, Storz connectors

Inquiry Now

Manure Drag Hose Feature

●Wear-resistant, stretch-resistant
●Excellent resistance to oils, fuels and chemicals
●Excellent anti-aging, weather resistance, ozone resistance and UV resistance
●Fast and efficient fertilization of large areas
●Enhanced protection against mechanical damage
●Long service life

Dragline Hose Specification


SIZE	ID	Wall Thinckness		W.P.	B.P.	Length		weight		Tensile styength
inch	mm	inch	mm	psi	psi	ft	m	lb/ft	kg/m	lbs	m
2 1/2	65+2.0	0.138	3.5	300	900	660	200	0.53	0.8	16502	7500
3	76+2.0	0.138	3.5	250	750	660	200	0.65	0.98	18702	8500
3 1/2	90+2.0	0.138	3.5	200	600	660	200	0.8	1.2	26403	12000
4	102+2.5	0.138	3.5	180	540	660	200	0.93	1.4	28603	13000
4 1/2	114+2.5	0.138	3.5	180	540	660	200	1.03	1.55	35204	16000
5	127+2.5	0.138	3.5	160	480	660	200	1.03	1.7	38504	17500
6	152+2.5	0.138	3.5	160	480	660	200	1.33	2	53905	24500

Application

It is commonly used in livestock farming operations, where liquid manure is a valuable source of nutrients for crop production. They are particularly suitable for spreading manure over a large area, such as pastures or fields used for growing forage or row crops.
