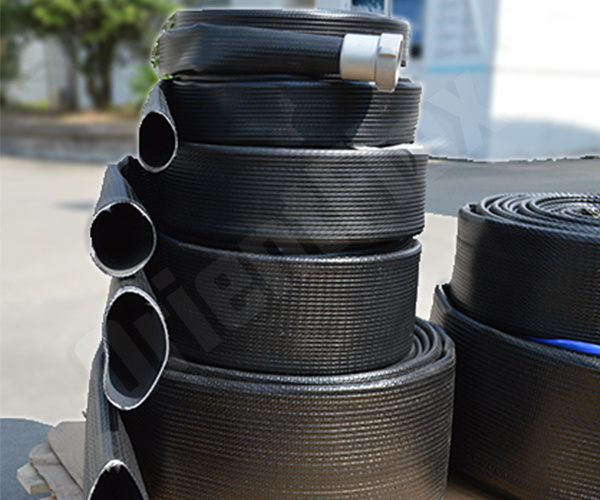

Heavy Duty PVC-NBR Layflat Hose

Heavy Duty PVC-NBR Layflat Hose has a special structure. The general hoses have a polyester cover and a lining. But this type of hose has a thermoplastic polyester tube and cover. While the reinforce is he blend of PVC and NBR. Thus the hose has both the advantages of PVC and NBR.

Construction:
Tube and Cover: Extruded thermoplastic polyester

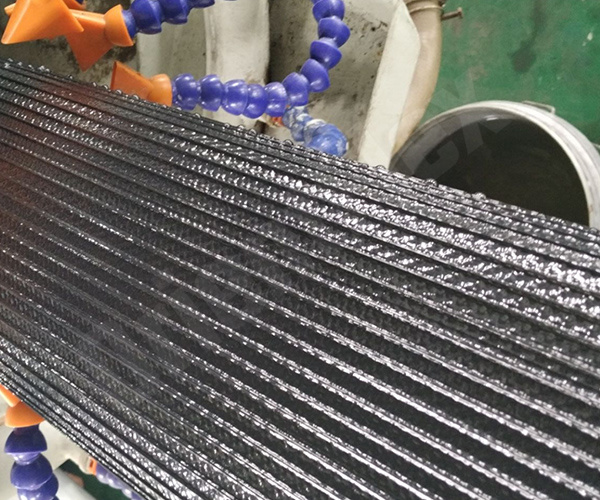

Reinforcement: Circular woven filament polyester yarn based on PVC-NBR material.
Color：Black, other colors available per request

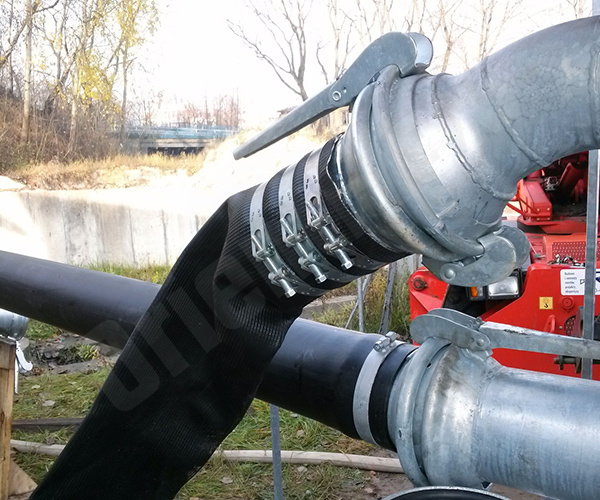

Couplings：Camlock coupling, Bauer coupling, LDHC series

Inquiry Now

Heavy Duty PVC-NBR Layflat Hose Feature

●UV resistance, lighter and less bulky than most rubber discharge hose
●Resist abrasion and weathering, Resi kinking and stretching while in service.
●More economic solutions replace NBR layflat hose and TPU layflat hose in some cases.

Specification


I.D		Weight	Wall thickness	W.P.	B.P.
inch	mm	kg/M	mm	bar	bar
4	102	1.3	3.5	13	39
5	127	1.5	3.8	13	39
6	152	2	3.8	13	39
8	203	3.2	4.2	13	39
10	254	4.3	3	13	39
12	305	4.8	2.5	13	39

Application

Suitable for agriculture ,irrigation, mining dewatering, petrochemical dewatering and any other applications which need liquid transportation.Dewatering and operations, Frac water transfer, Distribution of slurry and manure as fertilizer. Fuel, oil and chemical transfer.
