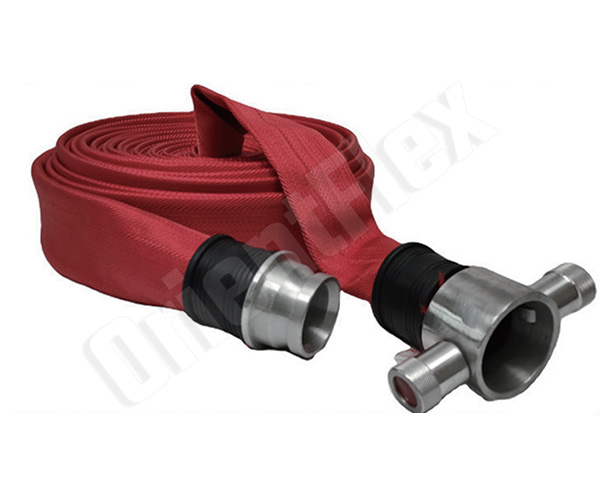

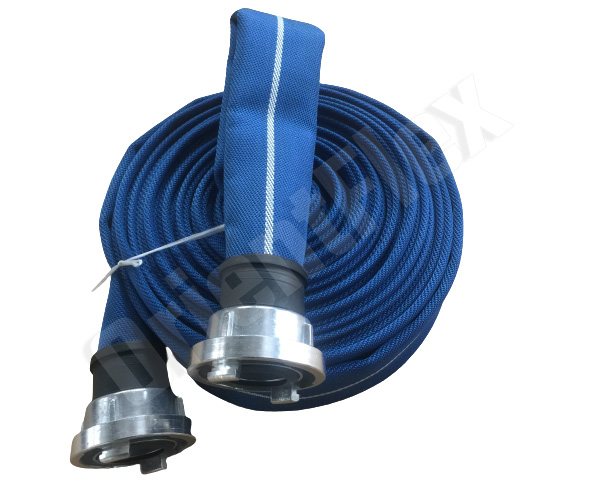

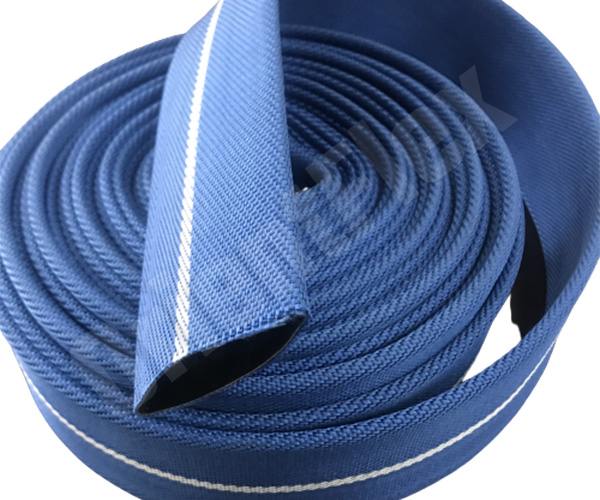

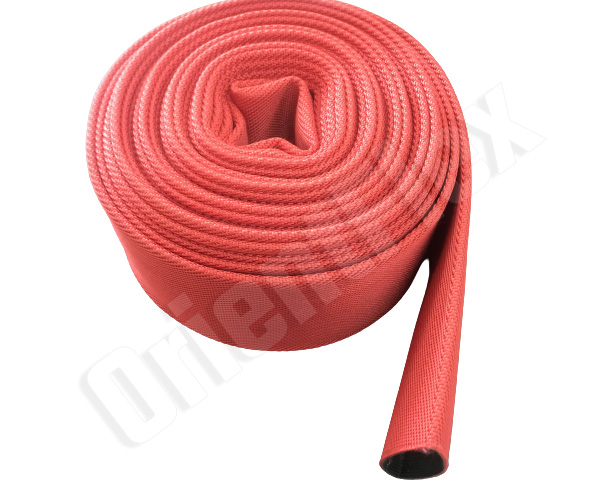

Single Jacket Fire Hose

A single jacket fire hose is a type of firefighting hose that features a single layer of woven fabric as its outer covering.

Construction:
Lining :PVC /Rubber /TPU
Reinforcement cover:Polyester jacket Working pressure:8bar,10bar,13bar,16bar,20bar,25bar
Custom: color,length,printing,working pressure,couplings

Inquiry Now

Single Jacket Fire Hose Feature

● Light weight
● Ozone resistance,Abrasion resistance
● Low-temperature resistance, Oil resistance
● Long service life

Single Jacket Hose Specification


I.D.		W.P.		B.P.		Length
inch	mm	Bar	Mpa	Bar	Mpa	m
1"	25	13-25	1.3-2.5	39-75	3.9-7.5	40
1-1/4"	32	8-25	0.8-2.5	24-75	2.4-7.5	40
1-1/2"	38	8-25	0.8-2.5	24-75	2.4-7.5	40
1-3/4"	45	8-25	0.8-2.5	24-75	2.4-7.5	40
2"	51	8-25	0.8-2.5	24-75	2.4-7.5	40
2-1/2"	64	8-25	0.8-2.5	24-75	2.4-7.5	40
2-3/4"	70	8-25	0.8-2.5	24-75	2.4-7.5	40
3"	76	8-25	0.8-2.5	24-75	2.4-7.5	40
4"	102	8-16	0.8-1.6	24-48	2.4-4.8	40
5"	127	8-13	0.8-1.3	24-39	2.4-3.9	40
6"	152	8-13	0.8-1.3	24-39	2.4-3.9	40
