Oil & Gas Fracturing TPU Hose

Shale oil and gas exploitation fracturing water supply hose is a kind of single-forming co-extruded double-sided polyurethane hose, which is composed of inner TPU layer, fiber reinforced layer and outer TPU layer.

Construction:

Material: Disposable Extruded Polyurethane Flat Hose
Working Pressure: 10-21 bar
Working Temperature: -50°C to +80°C
Standard Length: 50, 100/200 meters, customizable lengths available
Color: Black, other colors can be customized

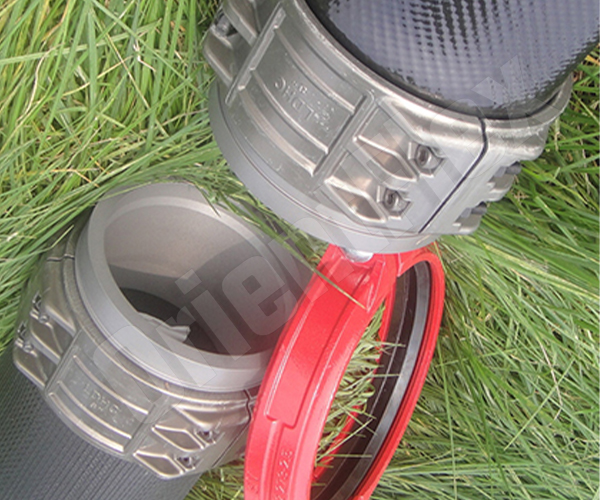

Fittings: LDHC series quick couplings, BAND-IT preformed clamps, groove clamps, German-style connectors,Comlack quick couplings.

Inquiry Now

Oil & Gas Fracturing TPU Hose Feature

1.Small volume, easy winding, high strength
2.Long length, large diameter, high pressure
3.Abrasion resistance, puncture resistance, weather resistance, chemical resistance
4.UV resistance, bacteria resistance, and aging resistance
5.Large flow, convenient connection
6.Can adapt to different landforms and geomorphology, can be widely used in a variety of complex environments

Oil & Gas Fracturing TPU Hose Specification


Dimensions	Diameter	Thickness	Weight	Working Pressure	Burst Pressure
inch	mm	mm	kg/m	bar	bar
1 1/2"	39+1.5	2.2	0.3	21	63
2"	51+1.5	2.7	0.5	21	63
2 1/2"	64+1.5	2.9	0.65	17	51
3"	76+2.0	3	0.75	17	51
4"	102+3.0	3.2	1.16	17	51
6"	154+2.5	4.2	2.33	15	45
8"	205+3.0	4.5	3.43	15	45
10"	254+3.0	4.6	4.59	14	42
12"	305+3.0	4.7	5.01	10	30

Application

Fracturing water supply hoses for shale oil and gas production are mainly used to transport fracturing fluids with large flow and high pressure over a long distance during hydraulic fracturing of shale oil and gas production, and to send contaminated fluids back from underground to sewage treatment plants.
