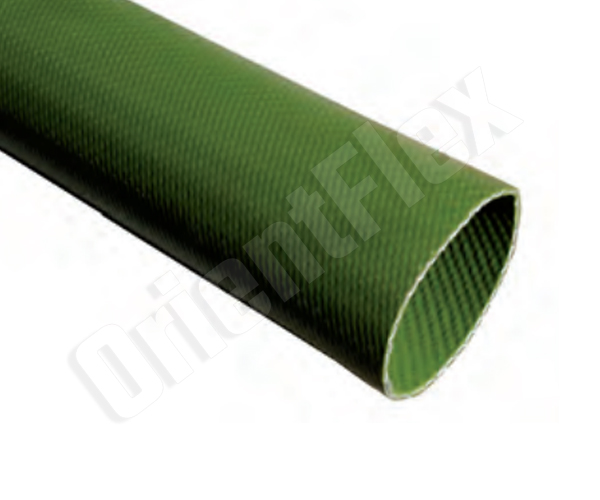

TPU Temporary Oil Transfer Hose

Frac hose is a high pressure hose specifically designed for hydraulic fracturing operations in the oil and gas industry.

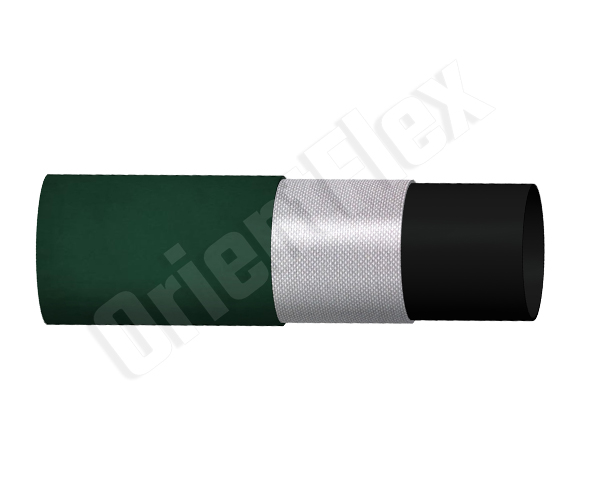

Construction:

Cover：Abrasion resistant and oil resistant TPU
Reinforcement：100% High tenacity synthetic polyester yarn or aramid(several pcs of cooper wires are embeded into the reinforcement layer)
Tube：Abrasion resistant and oil resistant TPU
Color：Olive green, NATO green, other colors available per request

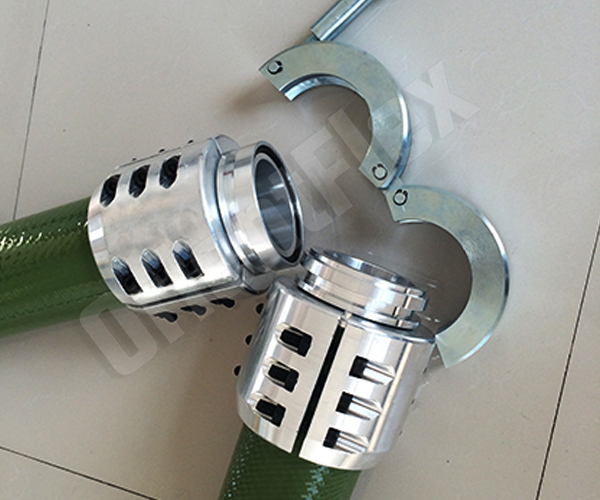

Couplings：HPHC-FM large diameter high pressure couplings

Inquiry Now

TPU Temporary Oil Transfer Hose Feature

1. High wear resistance, oil resistant,weathering resistant
2. anti-stastic, UV, Ozone
3. Large liquid capacity transmission capacity
4. Lighter, softer and easier to deploy

TPU Oil Frac Hose Specification


ID		Wall Thickness	Working pressure	Bursting pressure

Inch	mm	mm	PSI/bar	PSI/bar
1-1/2"	35+1.5	2.2	250/17	750/51
2"	51+1.5	2.7	250/17	750/51
2-1/2"	64+1.5	2.9	250/17	750/51
3"	76+2.0	3	250/17	750/51
4"	103+2.0	3.2	250/17	750/51
6"	153+2.5	4.2	200/14	600/42
8"	204+3.0	4.5	215/15	645/45

TPU Temporary Oil Transfer Hose Application

Mainly used in ships, docks, warehouses, field army mechanical troops of all kinds of temporary oil supply, oil and coal mine and other high flammable danger area drainage.Due to the use of special materials, the product has almost zero contamination to oil substances.
